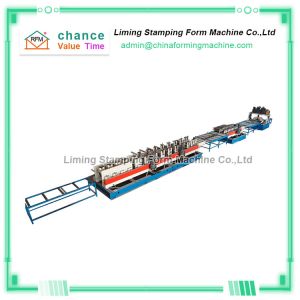

Stainless Steel Cable Tray Roll Forming Machine Hydraulic Cutting

Name: Stainless Steel Cable Tray Roll Forming Machine Hydraulic Cutting
Brand: LIMING
Price: 1 USD

Brand Name : LIMING

Model Number : LM-cable4

Certification : CE、BV、ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 450set/Year

Delivery Time : 30 work days

Packaging Details : Nude、Anti-dust film, Anti-rust cloth

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Restaurant, Home Use, Construction works

Cutting type : Hydralic Cutting

Rolling thinckness : 1-2mm

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Warranty : 2 years

Voltage : 380V

Production Capacity : 8-15m/min

Weight : 20Ton

Key Selling Points : Automatic

Contact Now

Stainless Steel Hot Dip Galvanized Cable Tray Roll Forming Machine

"Stainless steel hot dip galvanized cable tray roll forming machine" is a very in-depth knowledge. There are many issues that need attention. If you are not familiar with"Stainless steel hot dip galvanized cable tray roll forming machine", it is impossible to do it. The following is some of the main knowledge o f"Stainless steel hot dip galvanized cable tray roll forming machine", I hope to help you.

Variety selection of "Stainless steel hot dip galvanized cable tray roll forming machine":

1. Cable networks that need to shield electrical interference or need external protection (for example: cables laid in corrosive liquids, flammable dust, etc.) should use trough composite anticorrosive shielded cable trays ("Stainless steel hot dip galvanized cable tray roll forming machine") , They need to cover up.

2. (F) type composite epoxy resin anticorrosive and flame retardant cable tray should be used in highly corrosive environment. Support arms, brackets and other accessories should also use the same material to extend the life of the bridge and accessories"Stainless steel hot dip galvanized cable tray roll forming machine" should be covered with dust or placed outdoors.

3. In addition to the above, tray type, trough type, step type, glass fiber reinforced plastic flame retardant bridge or steel ordinary bridge can also be selected according to the site environment and technical requirements."Stainless steel hot dip galvanized cable tray roll forming machine" should be covered with a cover that is easy to accumulate dust or in outdoor places.

Technical parameters of Stainless Steel Hot Dip Galvanized Cable Tray Roll Forming Machine

NO.	Name	Quant.	Remark
1	Auto-de-coiler	1
2	Leveling machine	1	5.5kw frequency change drive motor, speed adjustable
3	Support frame	3	Roller type
4	NC900servo feeder	1	NC900 Servo motor drive
5	Punching press	1	120ton
6	punching mould	9
7	Main forming machine	1	100-900mm,thickness 1-3mm,material of roller:GCr 15
8	Hydraulic cutting machine	1
9	Cutting blade	9
10	Run-out table	1
11	Electric panel	1	PLC control system

Product Tags:
